2.4G 4-Channel RC Boat Model Kit for Kids Double 180 Strong Magnetic Motors Kit with Motor Mount+Drive Shaft+D36 Propeller

Product description

COKOLATIA 2.4G 4-Channel Remote Control +180 Motors Kits

2.4G 4-Channel Remote Control + 180 Motor for RC Boat

The 2.4G 4-Channel Remote Control+180 motor kit is suitable for RC boats DIY Model boat Spare Parts.4-way 8-button 2.4G RC kit: including remote control, receiver board and screws 3, suitable for hobbyists or school purchase to make RC car model boat model! Be careful, can’t make airplane model!It is recommended to use 3V and 2 AA batteries with 1.5V for the remote controller. 130, 260, 180 motors are recommended. 180 motor: 3V-6V strong magnetic RC boat motor, Shaft length is 6.5mm, Shaft diameter is 2mm.

Operation Notes:

1. Keep the switch of the receiver board and the remote control in the off state, connect the power supply of the receiver board and the motor2. Turn on the receiver board switch, then quickly turn on the remote control switch, the red indicator light on the remote control will flash and then go out, indicating successful pairing. If the red indicator light on the remote control box flashes quickly and then goes out, it means the pairing is successful. If the light flashes but doesn’t go out, please wait for a while. Our board in the factory has completed the pairing.3. The maximum output current of the board is 5A, set two acceleration keys in the center.

2.4G Remote Control Kit Specifications:

Power supply voltage: DC 6V power supply for the receiver board (max. 7.6V), 3V for the remote control, two 1.5V AA batteries.Output voltage: 3-7.6V, motor terminal outputRemote control distance: 50-100 metersReceiver board size: 53*42MM, remote control size: 116*89mm

Description:

– Recommended motors: 130, 180 motors.

– The Boat model RC can be go forward, backward, left turn, right turn.

180 Motor Specification:

Motor model: 180 Strong Magnetic motorShaft length: 6.5mmShaft diameter: 2mmVoltage: 3-6VSpeed: 2.4V idling 0.12A;3.4V idling 0.13A speed of 5000 rpm;6V idling 0.18A; 108MM propeller current 1.33A speed 1WSize: 31*20*15mm

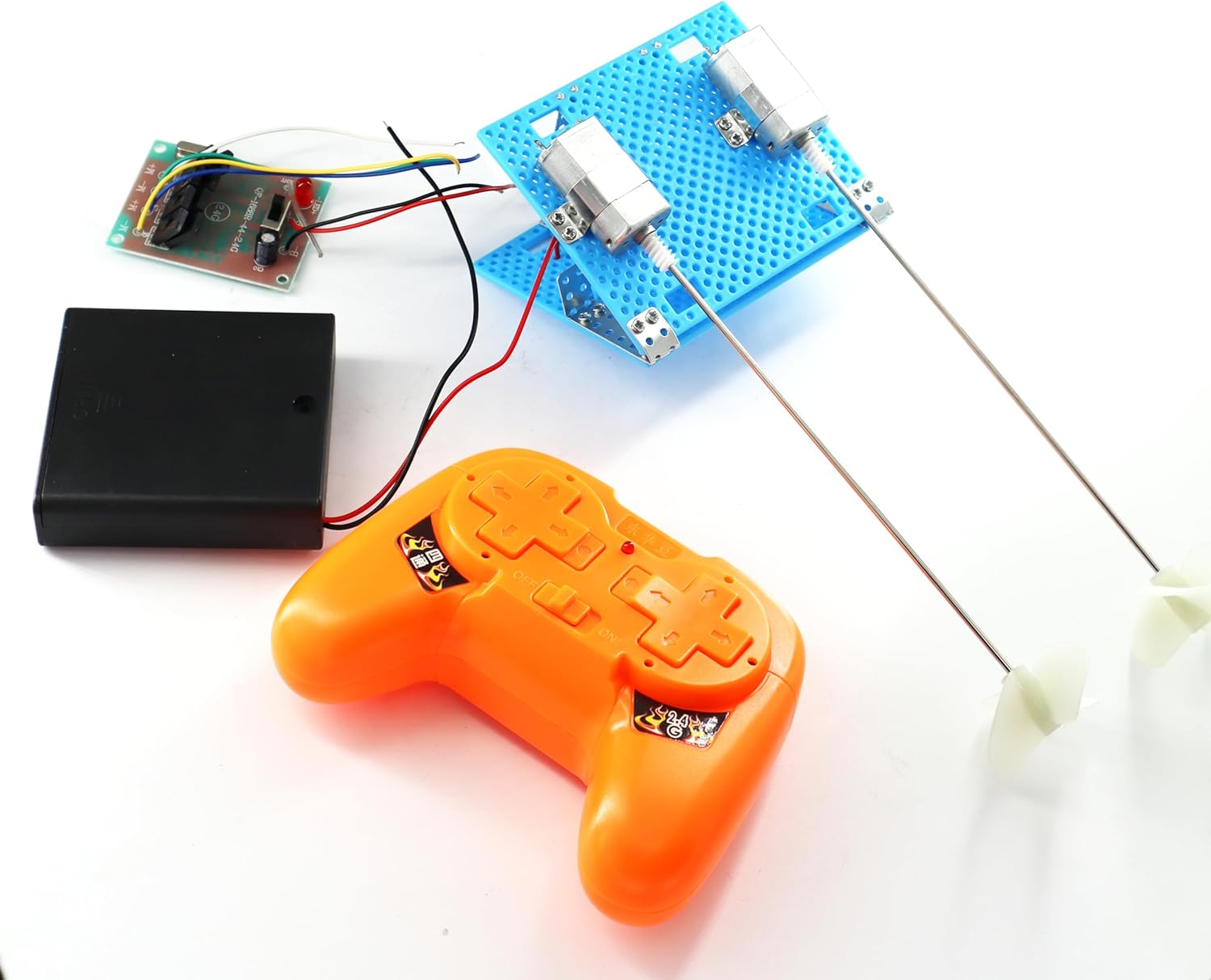

INCLUDED: 2×180 strong magnetic motor, 2xmotor mount, 2xconnector (10mm), 2x150mm length shaft, 2xD36 propellers, 2x Bottom plate, 4x Metal connectors, 1x pack of screws.

Package list:

1x 2.4G Remote Control Kit

2 x 180 strong magnetic motor (2 x motor mount)

2 x connector (10mm)

2 x 150mm length shaft

2 x D36 propellers(1x cw+1x ccw propeller)

2x Bottom plate

4x Metal connectors

1x pack of screws

The 2.4G 4-channel remote control+180 motors kit is suitable for RC boats Diy Model boat Spare Parts.
Four-way eight-button 2.4G remote control kit, including remote control, receiver board and screws 3pcs, suitable for hobbyists or schools to make RC car model boat model! Note: Cannot make airplane model! Power supply: DC 6V for the receiver board, 3V for the remote control. remote control distance: 50-100 meters.
MULTIFUNCTIONAL BOAT MODEL KIT: The 36mm forward and reverse oars are used, which is great, and with the remote control you can go forward, backward, turn left, turn right!
You can get 1x 2.4G Remote Control Kit, 2x 180 strong magnetic motor, 2x motor mount, 2x connector (10mm), 2x150mm length shaft, 2x D36 propellers, 2x Bottom plate, 4x Metal connectors, 1x pack of screws.
180 motor: 3V-6V strong magnetic RC boat motor, Shaft length is 6.5mm, Shaft diameter is 2mm.
