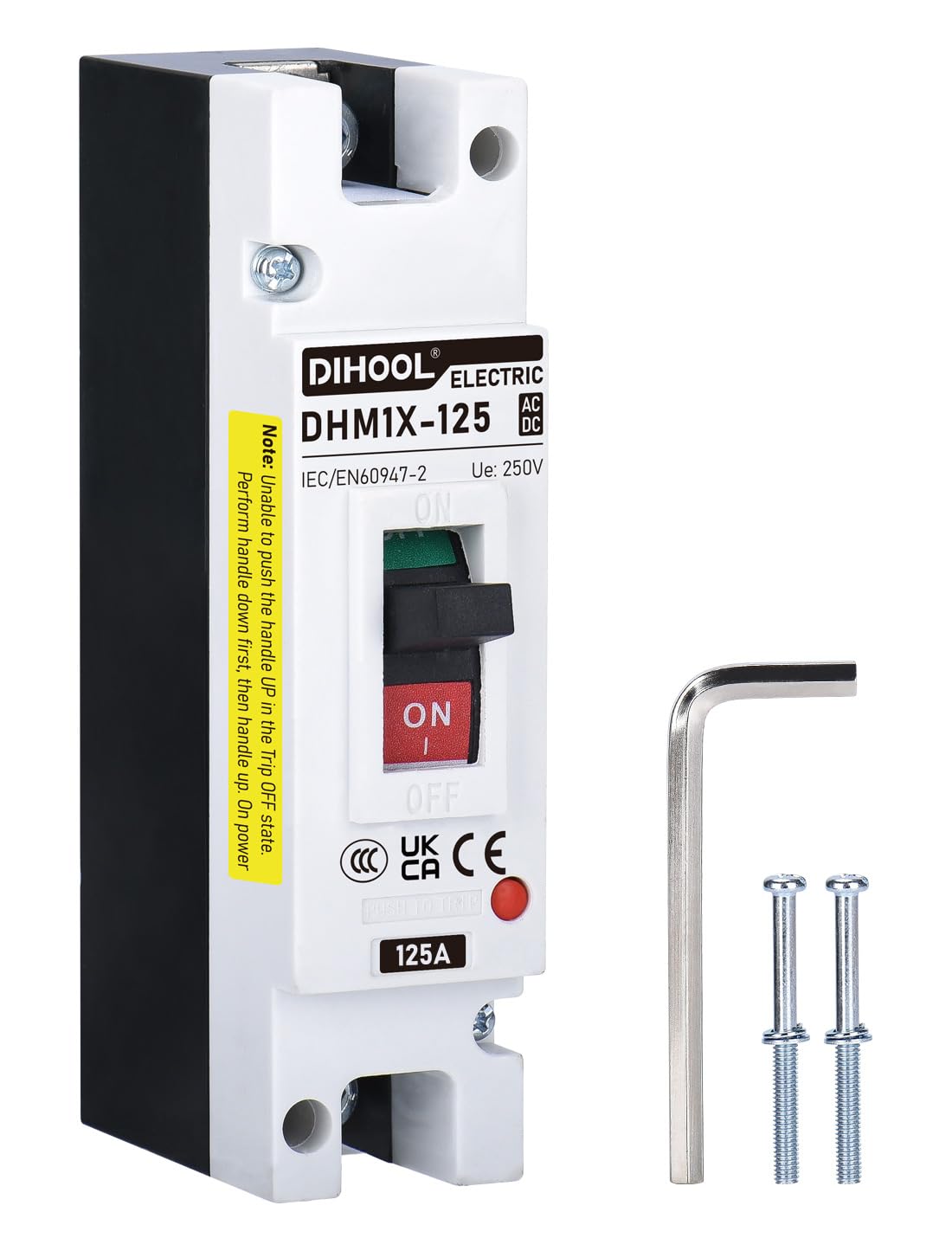

DIHOOL 125 Amp Heavy Duty Battery Disconnect Switch, DC Circuit Breaker for Car Audio RV Marine Boat Truck Trolling Motors

From the brand

DC Circuit Breaker

AC/DC Circuit Breaker

Solar Disconnect Switch

Outdoor Electrical Box

PV Disconnect Switch ＆ PV Fuse

About US

DIHOOL is a professional manufacturer engaged in the research and development, production, sales, and service of photovoltaic DC isolation switches, solar DC series boxes, AC/DC circuit breakers, AC/DC surge protectors, DC fuses, electric lifting systems, and other products.

We strive to earn the trust of each of our customers by providing exceptional products！

Thank you for choosing us!

Product Dimensions ‏ : ‎ 2.72 x 1.5 x 5.91 inches; 1.28 Pounds
Item model number ‏ : ‎ DH M1X 1P 125A
Date First Available ‏ : ‎ September 20, 2024
Manufacturer ‏ : ‎ DIHOOL ELECTRIC
ASIN ‏ : ‎ B0DHK75DN2
Country of Origin ‏ : ‎ China
Best Sellers Rank: #261,958 in Sports & Outdoors (See Top 100 in Sports & Outdoors) #88 in Boat Battery Switches
Customer Reviews: 4.3 4.3 out of 5 stars 11 ratings var dpAcrHasRegisteredArcLinkClickAction; P.when(‘A’, ‘ready’).execute(function(A) { if (dpAcrHasRegisteredArcLinkClickAction !== true) { dpAcrHasRegisteredArcLinkClickAction = true; A.declarative( ‘acrLink-click-metrics’, ‘click’, { “allowLinkDefault”: true }, function (event) { if (window.ue) { ue.count(“acrLinkClickCount”, (ue.count(“acrLinkClickCount”) || 0) + 1); } } ); } }); P.when(‘A’, ‘cf’).execute(function(A) { A.declarative(‘acrStarsLink-click-metrics’, ‘click’, { “allowLinkDefault” : true }, function(event){ if(window.ue) { ue.count(“acrStarsLinkWithPopoverClickCount”, (ue.count(“acrStarsLinkWithPopoverClickCount”) || 0) + 1); } }); });

Function: Thermal Magnetic Trip, circuit overload protection, isolation circuit, circuit short circuit protection
30% silver content in moving contacts, 45% silver content in stationary contacts
Working voltage: DC 12V~250V AC 90~240V short-circuit breaking capacity 25kA
Size:150MM x 86MM x 38MM, It needs to be installed on the panel through screws
Suitable for DC application such as photovoltaic / UPS / battery / Datacenter etc.
